System Benefits
- Features an IoT-specified microcontroller (MCU) supporting operations at 120MHz with 2M embedded Flash
- Solutions include an air quality sensor, light sensor, temperature and humidity sensor, a 6-axis inertial measurement unit, and a microphone
- Arduino shield pinout allows for extension of other functions, such as a BG96 cellular shield that supports CAT-M1 and NB-IoT frequencies, as well as 2G, GPS and additional sensors

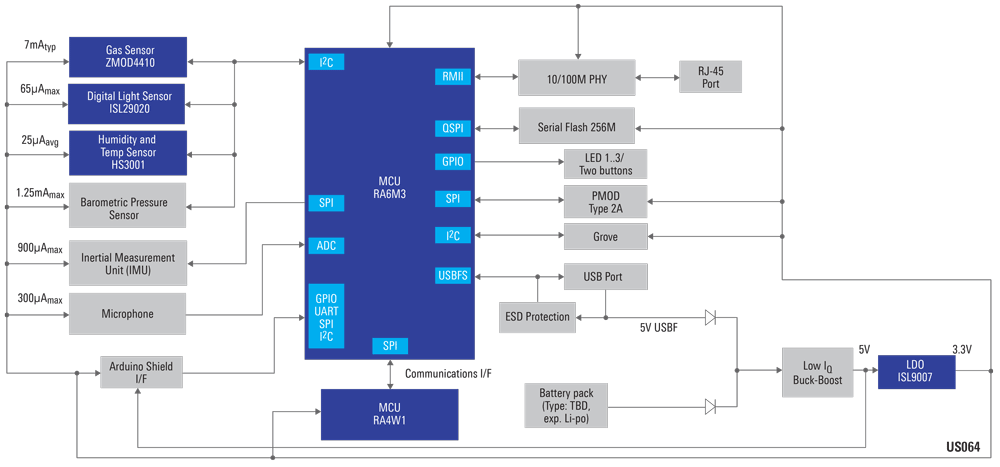

System Block Diagram
Recommended Products
Microcontroller
| Product | Description | Featured Document |
| RA6M3 | 120MHz Arm® Cortex®-M4F core with USB High-Speed, Ethernet and TFT controller | Datasheet |
| RA4W1 | 48MHz Bluetooth 5.0 Low Energy single-chip MCU | Datasheet |
LDO
| Product | Description | Featured Document |
| ISL9007 | High current LDO with Low IQ and High PSRR | Datasheet |
Sensor
| Product | Description | Featured Document |
| ZMOD4410 | Indoor air quality sensor platform | Datasheet |
| HS3001 | High-performance relative humidity and temperature sensor | Datasheet |
| ISL29020 | Low power, high sensitivity, light-to-digital sensor with I2C interface | Datasheet |
