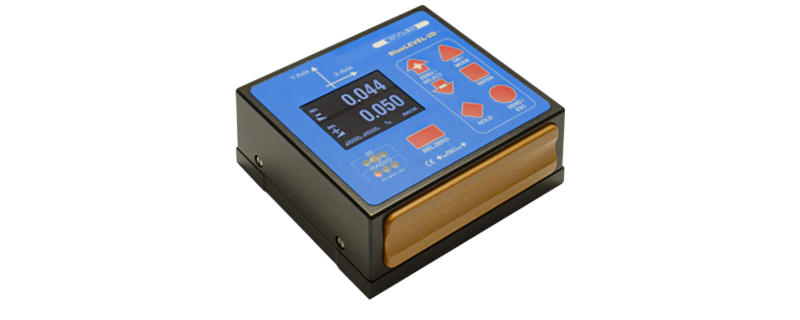

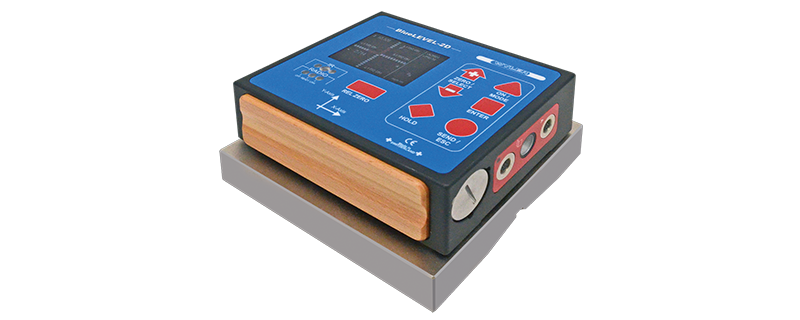

Wyler Dual axis Inclinometer BlueLEVEL-2D

The perfect dual axis inclinometer for measuring straightness, flatness, squareness and machine geometry

With the introduction of the BlueLEVEL-2D WYLER AG is underlining again its leading position in the field of inclination measuring instruments: The new dual axis Blue-LEVEL-2D combines for the first time two high-precision inclination sensors in a compact housing together with an integrated graphical display!

The perfect dual axis inclinometer for measuring straightness, flatness, squareness and machine geometryWith the introduction of the BlueLEVEL-2D WYLER AG is underlining again its leading position in the field of inclination measuring instruments: The new dual axis Blue-LEVEL-2D combines for the first time two high-precision inclination sensors in a compact housing together with an integrated graphical display!...

继续阅读完整内容

请查看下方广告以解锁文章剩余内容

This opens new applications and facilitates the alignment of machines and tools substantially:
.Efficient measurement of flatness and machine geometriy, like Pitch and Roll
.Alignment of machines in two directions simultaneously
.Alignment of reference plates
.Pitch and roll measurement on machines
.Alignment of cranes, containers, trucks etc.
.Monitoring of cranes, containers, trucks etc.

The inclination measuring instrument BlueLEVEL-2D has the following features:
.Rugged, rust-protected housing made of aluminium
.High precision bases with three inserts made of hardened steel Ø 20mm with one M4 thread each
.Large and very easy-to-read color display
.Various display methods can be chosen
.Wireless communication, based on Bluetooth technology
.All current units can be indicated
.The instrument is compatible with the full range of WYLER digital sensors
.Powered by standard 1.5V batteries, rechargeable batteries or with main adapters
.The internal software allows a simple zero setting, using a reversal measurement
.Fulfils the strict CE- / FCC requirements (immunity / emission electromagnetic smog)
.Options:
..External power supply 24V
..Cable to connect the instrument to a PC
..Software to collect measuring data
..Various attachable measuring bases on special request, like e.g. prismatic, varioBASE-2D

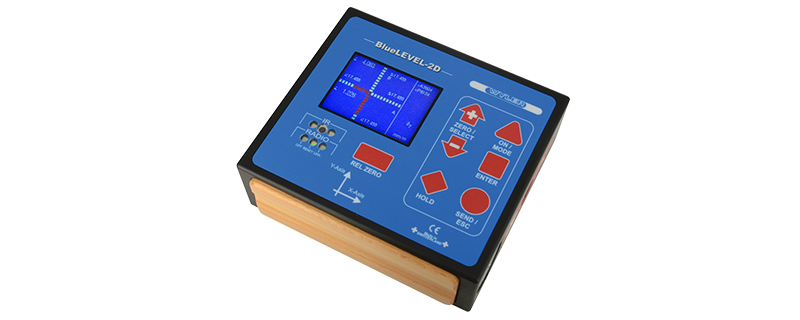

Graphical 2D-display
The 2D-display shows graphically the position of an object in space, respectively the change of its position, and makes the information easily understandable.

This substantially facilitates the alignment of e.g.
.a machine
.a reference plate
.etc.

The following parameters (among others) can be set and changed on the BlueLEVEL-2D:
.Units
.Display of measuring range
.Type of display
.Filter settings

It is possible to send the measured data via an RS232 port to a PC/laptop and therewith to the
WYLER software wylerSPEC, wylerCHART and wylerDYNAM.

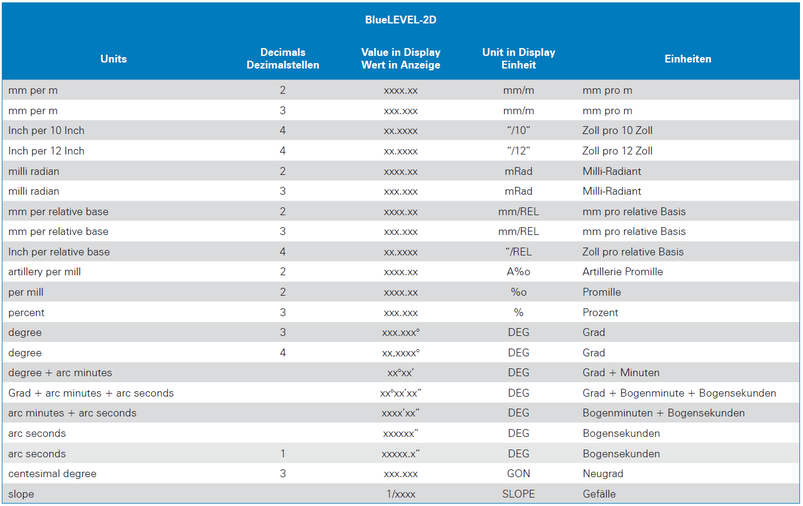

BlueLEVEL-2D
csm bluelevel 2D s60 1e640b9926

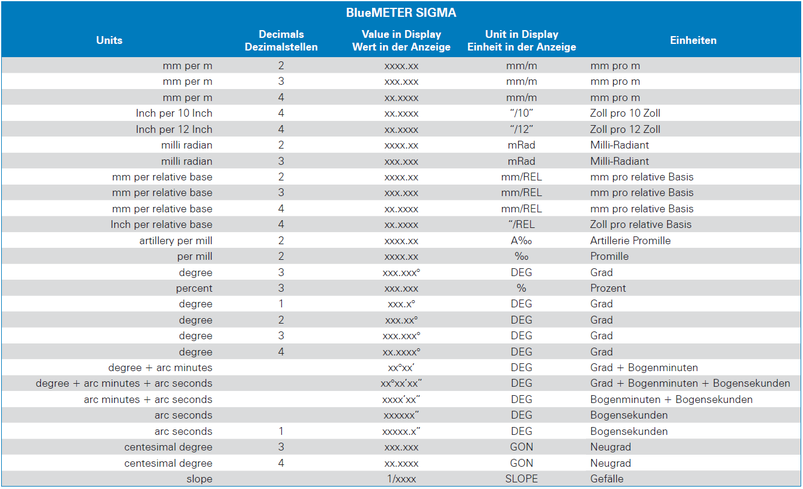

BlueMETER SIGMA
